Sentinel II Airbeam Structures

The Sentinel II Airbeam tented structure erects in less than six minutes with no major tools and minimal labor. The Airbeam is available in four sizes and four colors. The Airbeam’s rapid deployment configuration is ideal for military training, emergency shelters, commercial/industrial support, or for staff support at special events. The Airbeam is modular and scalable and can be complexed together to establish larger facilities to fit site and customer specific requirements.

Ready for use in less than 10 minutes

Lightweight frame system allows for placement and movement by two people

Modular – connect multiple shelter in different directions

Maximum interior space due to vertical sidewalls
Plan your deployment
Specifications
View Gallery (4 images)
View Gallery (4 images)

Temporary Housing

Temporary Housing

Learn More

Tented Billeting

Tented Billeting

Learn More

Containerized Berthing Unit

Containerized Berthing Unit

Learn More

Collapsible Modular Unit

Collapsible Modular Unit

Learn More

Are You Ready to Plan Your Mission?

plan your deployment

Logo for Deployed Resources
Linkedin-in

 Careers    |     Our Certifications      |    Privacy Policy

©2025 Deployed Resources, LLC. All rights Reserved.

Specifications | Sentinel II Airbeam Structures ​

Features
–All weather inflator and hose kit –Sealed vinyl floor –Roof vents enable airfow/reduce condensation –Flame retardant vinyl –LED lighting
Additional Items
-HVAC unit -Modular composite flooring –Power generators –Containerized showers, latrines, laundries, kitchens
Wind Load
–55mph/Gust to 65mph –(89km/h Gust to 105km/h)
Environment
-20 to 135 F (-29 to 57 C)
Sentinel II-3 Set Up Time
4 min
Sentinel II-3 Footprint
16’11” x 18’4” (5.2 x 5.8m)
Sentinel II-3 Arches/Beams
3
Sentinel II-3 Peak
9'2"
Sentinel II-3 Area
312 sf (95 sm)
Sentinel II-3 Total Weight
431 lb (195 kg)
Sentinel II-3 Packed Dimensions
Tent: 47” x 39” x 26” (1.2 x 1.0 x 0.7m) Tents/20’ Container: 15
Sentinel II-4 Set Up Time
5 min
Sentinel II-4 Footprint
24’9” x 18’4” (7.4 x 5.8m)
Sentinel II-4 Arches/Beams
4
Sentinel II-4 Peak
9'2"
Sentinel II-4 Area
452 sf (137.8 sm)
Sentinel II-4 Total Weight
536 lbs (243.2 kg)
Sentinel II-4 Packed Dimensions
Tent: 51” x 39” x 28” (1.3 x 1.0 x 0.7m) Tents/20’ Container: 15
Sentinel II-5 Set Up time
6 min
Sentinel II-5 Footprint
32’8” x 18’4” (10.0 x 5.8m)
Sentinel II-5 Arches/Beams
5
Sentinel II-5 Peak
9'2"
Sentinel II-5 Area
603 sf (183.8 sm)
Sentinel II-5 Total Weight
640 lb (290.3 kg)
Sentinel II-5 Packed Dimensions
Tent: 55” x 39” x 30” (1.4 x 1.0 x 0.8m) Tents/20’ Container: 12
Sentinel II-6 Set Up Time
6 min
Sentinel II-6 Footprint
40’6” x 20’8” (12.4 x 5.8m)
Sentinel II-6 Arches/Beams
6
Sentinel II-6 Peak
10'2"
Sentinel II-6 Area
840 sf (258 sm)
Sentinel II-6 Total Weight
765 lb (347 kg)
Sentinel II-6 Packed Dimensions
Tent: 59” x 39” x 35” (1.5 x 1.0 x 0.9m) Tents/20’ Container: 10
Available Colors
Sand White Forest Orange

Download Spec Sheet

Specifications may vary. Contact Deployed Resources for more information.

Ready to get started?
Plan Your Deployment

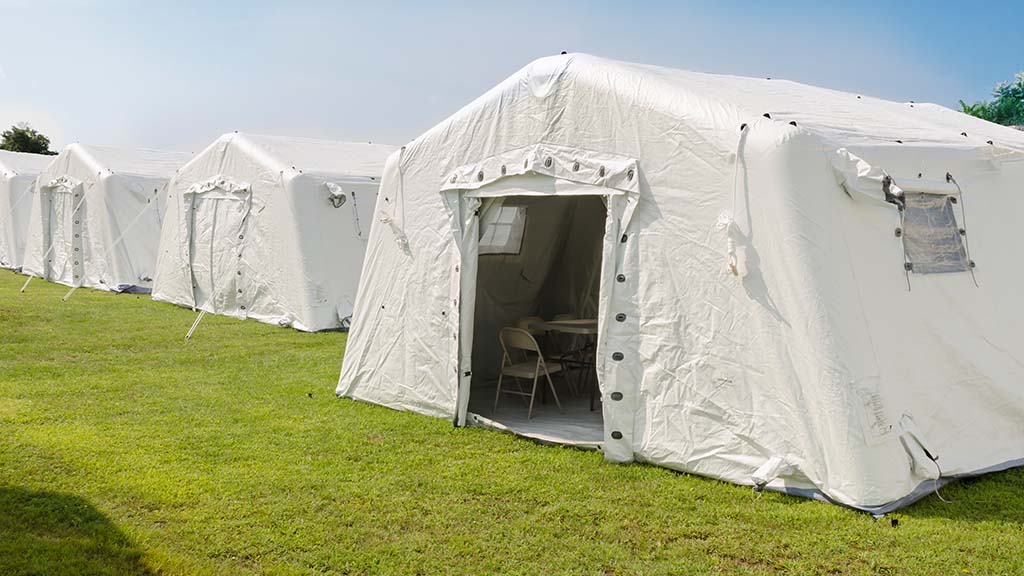

Sentinel-II

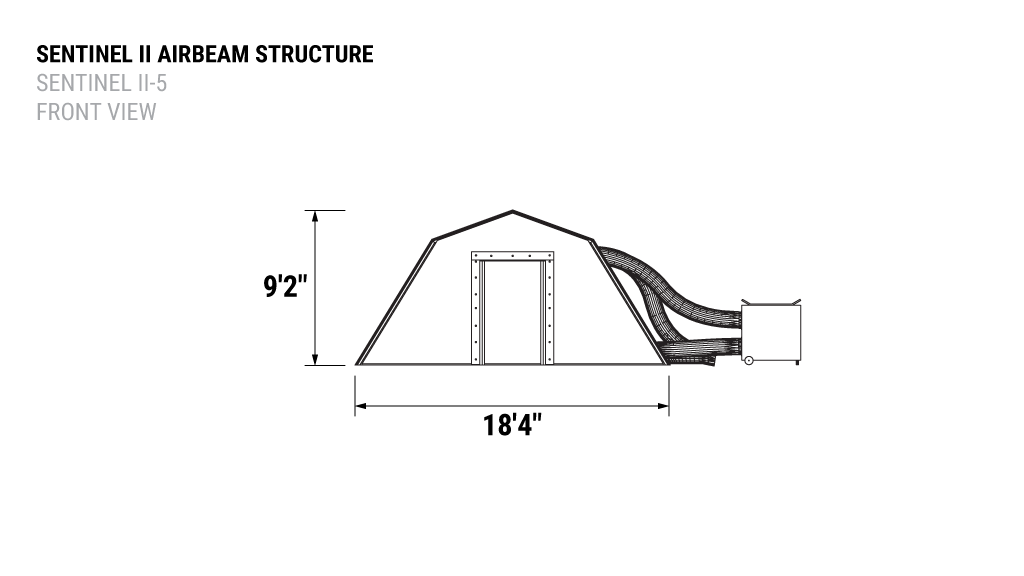

Sentinel-II front
Sentinel-II Rear

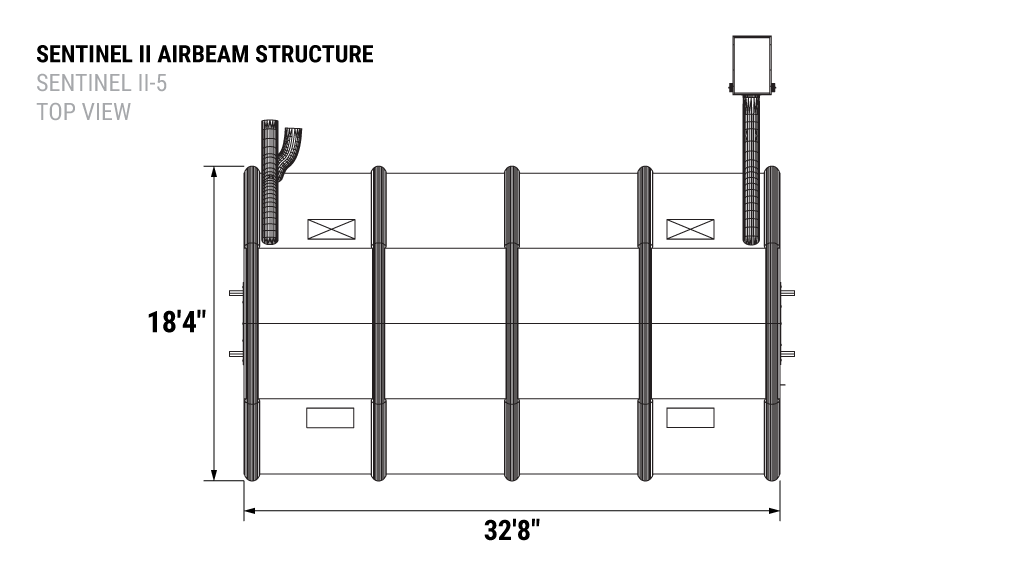

Sentinel-II floorplan
